Render: VB-FullAir 3C

FULL AIR SUSPENSION: VB-FULLAIR 3C

Full air suspension is an automatic, adjustable solution to a suspension problem where the existing leaf or coil spring suspension is replaced by a full air suspension system. This system includes air springs, shock absorbers, height sensors, a compressor and an electronic control unit (VB-ASCU).

The air suspension system filters out unevenness in the road surface, improving ride comfort.

While driving, the vehicle will constantly remain at the ride height set by VB-Airsuspension during installation.

The standard ride height is determined during the development of the air suspension and is fixed.

The ride height is the ideal height for comfort and stability. The driveability and stability of the vehicle are improved, which in turn increases safety. When the vehicle is at a standstill (in some cases with the handbrake on), the access/loading platform height can be increased and decreased to comfortably enter and exit the vehicle and for goods to be conveniently loaded and unloaded.

VB-FULLAIR 3C

VB-FullAir 3C is a complete air suspension system on the rear axle and an auxiliary air suspension system on the front axle of the vehicle. 3C or 3-Corner indicates that three sensors are fitted: two rear height sensors and one front pressure sensor. The VB-FullAir 3C system is only available for a limited number of motorhomes with an Iveco Daily chassis. The VB-FullAir 3C system comes with the remote control shown below. You can use our deluxe remote control (VB-Remote control) to easily control the various functions of the system.

Photo: motorhome driving onto ferry / Illustration: VB-FullAir 4C Remote motorhome version

VB-FullAir 3C Remote
Camper version


Off Road
Increase of around 30 mm for greater ground clearance on rough terrain.
Approx. <30 km/h


Parking
Lower the vehicle to virtually the maximum level to make it easier to get in and out. You can also use this function (depending on the original vehicle height) to reduce the ride height in order to enter a car park with a low roof or to drive under a gateway.
Approx. <30 km/h


Manual control
To vary the loading/unloading height.
<0 km/h


Ferry
The rear is raised to the maximum level to facilitate driving the vehicle onto a ferry or similar.
Approx. <30 km/h


Cargo space
The front axle is automatically raised and the rear is lowered to the maximum level to make it easy to load and unload the vehicle at the rear.
<0 km/h

VB-FULLAIR 3C IS OFTEN FITTED TO MEET THE FOLLOWING REQUIREMENTS. IT ENSURES:

  • Increases the ride height
  • Minimises sagging
  • Reduces vehicle roll
  • Improves suspension comfort
  • Improves driving characteristics
  • Increases safety
  • Improves stability
  • Control options

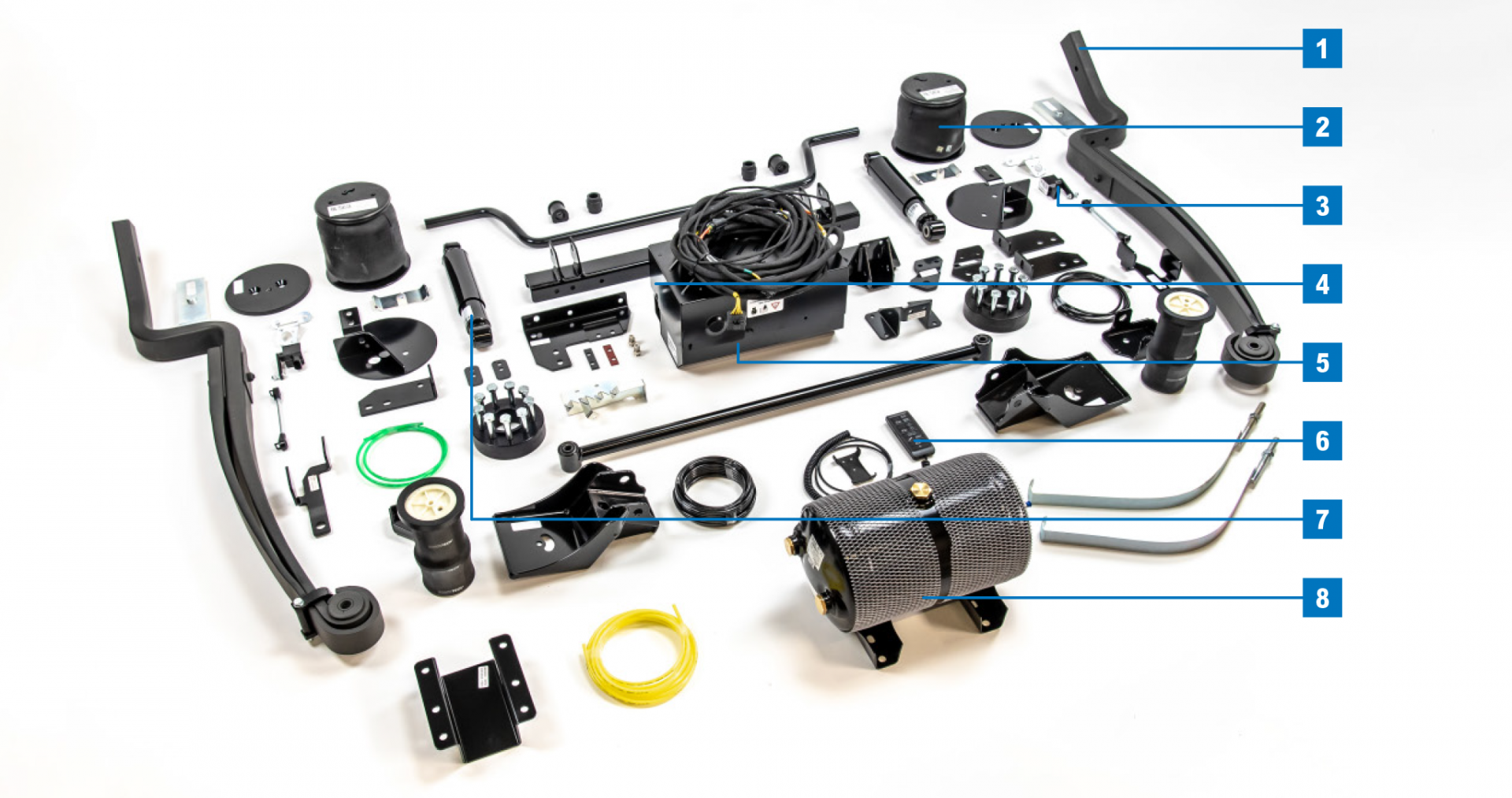

A VB-FULLAIR 3C KIT CONTAINS:

VB-FullAir 2C kit on the rear axle and auxiliary air suspension system on the front axle
Main springs
Air springs
Height sensors
Pressure sensor
VB-ASCU (control unit)
Remote control
Shock absorbers (in most cases)
Air tank
Fasteners
Fitting instructions
User manual
Approval documentation
Render: VB-FullAir 3C rear axle

BENEFITS OF VB-FULLAIR

  • Control options
  • Constant ride height
  • Improved comfort
  • Optimum driveability
  • Increased stability
  • Comfortable ride for passengers
  • Improved protection for fragile goods
  • Less wear on tyres/brakes

AVAILABLE OPTIONS FOR VB-FULLAIR 3C

Photo: emergency valve kit

EMERGENCY VALVE KIT

The VB-FullAir system can be pressurised by means of filling valves in the event of a possible electronic failure or a defect in the compressor. The vehicle can be brought up to driving height again by means of an external air supply so that the journey can be continued.

Photo: VB-ASCU

'EXTRA TIME' MODULE

This module in VB-ASCU ensures that the air suspension remains active for one hour after the ignition is switched off. The vehicle's ignition can therefore be switched off, while all the functions of the air suspension remain active.

Photo: additional switch

ADDITIONAL SWITCH

This is an additional switch that allows the high/low function of the air suspension to be controlled from a different location in the vehicle, for example at the rear door. The advantage of this is that the driver does not have to walk to the cab to operate the air suspension.

Photo: VB-FullAir 3C

WHEN SHOULD YOU CHOOSE VB-FULLAIR 3C?

Our easy-to-use Product Finder will help you select the right suspension or air suspension system for your needs. The Product Finder performs a search for your vehicle and will show the best solution for your specific make and model. That way, you can be sure the relevant solution is actually available for your vehicle.

Go to Product Finder

WANT TO GET VB-FULLAIR 3C FOR YOUR VEHICLE?

Our partner network has been structured such that you will always be able to find a VB-Partner in your region. Our VB-Partners can assist you with a quotation, fitting and/or any repair/maintenance work needed. Our VB-Partners have undergone specialist training in all aspects of fitting our systems and will be able to advise you appropriately.

Want to find out who is the nearest VB-Partner in your region?

Photo: VB-FullAir brochure

WANT TO READ MORE?

We have a specific brochure available for the 'full air suspension' product group. To read through everything again at your leisure, click on the button below to download the VB-FullAir brochure.
