Render: VB-SemiAir

SEMI AIR SUSPENSION:
VB-SEMIAIR COMFORT SYSTEM

With semi air suspension, the suspension is adjustable within specific limits. VB-SemiAir is available for both vehicles with leaf springs and vehicles with torsion bar suspension. On a vehicle with leaf springs, an air spring is fitted between the chassis and the rear axle. On a vehicle with torsion bar suspension, the air spring is mounted on the side of the chassis. Both VB-SemiAir systems support the existing suspension.

VB-SemiAir is supplied as a ‘two-chamber system’. This means the air springs are not connected to each other. Using a two-chamber system allows left and right to be adjusted separately, enabling levelling of the vehicle – within certain limits – even when loaded unevenly.

VB-SEMIAIR COMFORT SYSTEM

With the VB-SemiAir comfort system, the spring force can be adjusted (manually) within specific limits. This makes the VB-SemiAir comfort system a good option for vehicles that are often heavily loaded and regularly carry variable loads.

  • On a vehicle with leaf springs, an air spring is fitted between the chassis and the rear axle. The air spring supports the existing leaf spring.
  • On a vehicle with torsion bar suspension, the air spring is mounted on the side of the chassis. The air spring supports the existing torsion bar suspension.

A VB-SEMIAIR COMFORT SYSTEM IS OFTEN FITTED TO MEET THE FOLLOWING REQUIREMENTS:

  • Increases the ride height
  • Minimises sagging
  • Reduces vehicle roll
  • Improves suspension comfort
  • Improves driving characteristics

SIMPLE MANUAL OPERATION OF SEMI AIR SUSPENSION

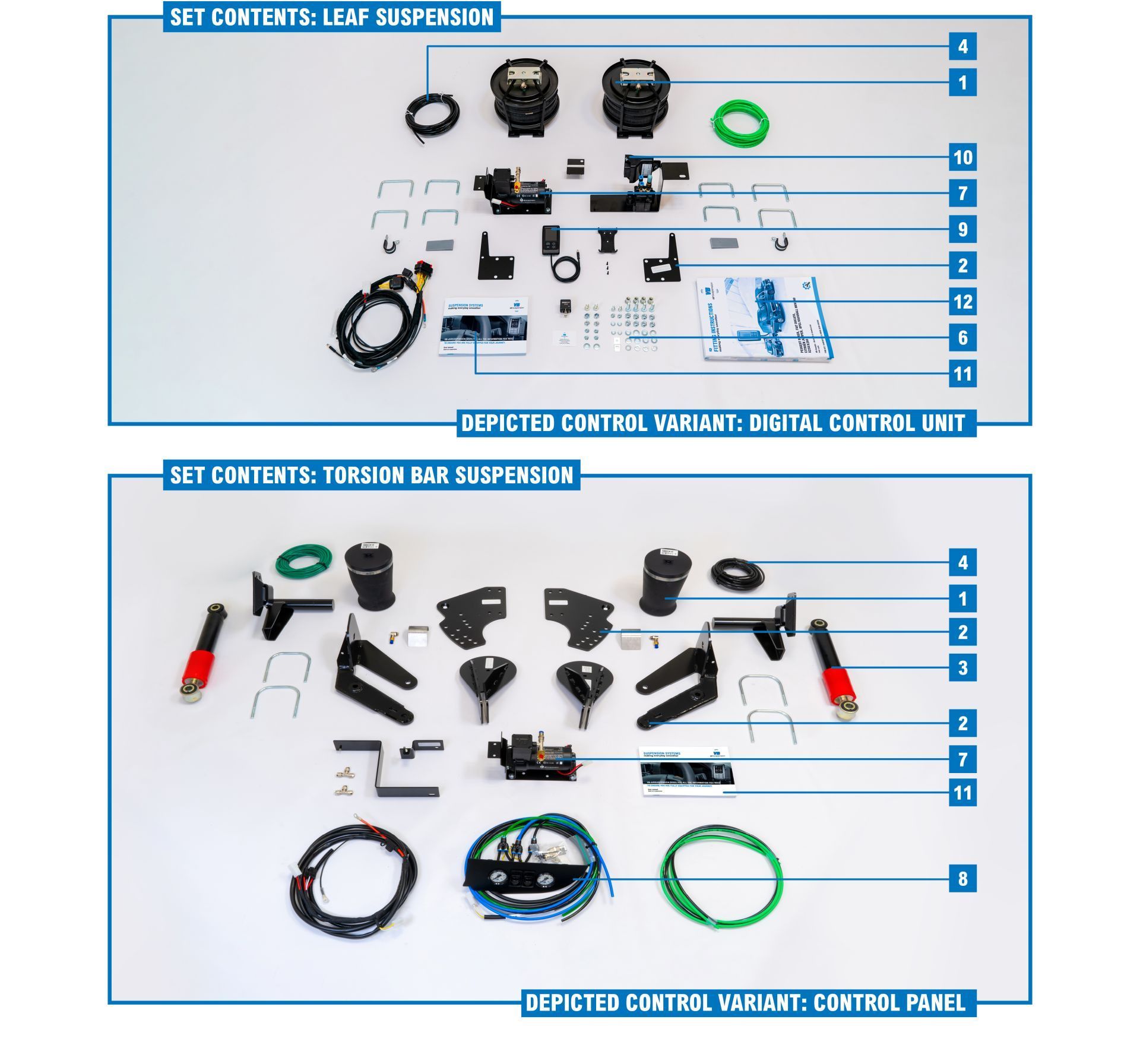

CONTENTS OF COMFORT SYSTEMS:

LEAF SUSPENSION TORSION BAR SUSPENSION
Air springs
Air spring support brackets
Shock absorbers
Air tubes
Fasteners
Compressor
Control panel with pressure gauges and high/low switch
Digital control unit with display for various setting options
VB-SACU*
User manual
Fitting instructions
Approval documentation (TÜV/ABE)
Render: VB-SemiAir zijaanzicht

BENEFITS OF VB-SEMIAIR:

  • Higher ride height and increased spring travel
  • Improved stability
  • Reduced off-centre level
  • Variable spring force
  • Good value for money
  • 'Plug-and-play' system allows for quick installation
  • The body, equipment and load remain protected against vibration/impact
  • Heavy loads are no longer noticeable from the outside
  • Less strain on the shock absorbers

THE VB-SEMIAIR COMFORT SYSTEM IS AVAILABLE WITH DIFFERENT CONTROL VARIANTS

Photo: VB-SemiAir compressor

VB-SEMIAIR COMPRESSOR

The VB-SemiAir comfort system comes with a powerful heavy-duty compressor. The compressor makes it easy to inflate the air springs.

VB-SemiAir comfort system with control panel

The VB-SemiAir comfort system consists of a VB-SemiAir basic system including a control panel with two pressure gauges, two high/low switches and a powerful heavy-duty compressor. The high/low switches make it easy to change your vehicle’s ride height. You can easily inflate the air springs, as the pressure gauges give an accurate reading of the pressure (in bar) in the springs.

Photo: VB-SemiAir control panel motorhome (dashboard)

MOTORHOME CONTROL PANEL (DASHBOARD)

Depending on the make and model of vehicle, the VB-SemiAir comfort system can be supplied with a control panel for fitting in the dashboard. The control panel has two pressure gauges and two high/low switches.

Photo: VB-SemiAir control panel LCV (driver's seat)

LCV CONTROL PANEL (DRIVER'S SEAT)

Depending on the make and model of vehicle, the VB-SemiAir comfort system can be supplied with a control panel for fitting on the side of the driver's seat. The control panel has two pressure gauges and two high/low switches.

Photo: VB-SemiAir control panel universal (dashboard)

UNIVERSAL CONTROL PANEL

The VB-SemiAir comfort system can also be supplied with a universal control panel. The control panel has two pressure gauges and two high/low switches. With the universal control panel, you can choose where in your vehicle you want the panel to be sited.

VB-SemiAir comfort system with digital control unit*

The VB-SemiAir comfort system consists of a VB-SemiAir basic system including a digital control unit and a compressor box with valve block, an electronic control unit (VB-ASCU) and a heavy-duty compressor. The digital control unit can be used to operate both air springs separately. The unit shows the bellows pressure for each air spring, and you can use the up and down arrows to increase or decrease the pressure in the air springs per spring or for both at once. Another benefit is that you can choose where you want to hang or place the digital control unit in the vehicle, within certain limits. This means there is no loss of useful storage compartments and no need to route (air) lines through the vehicle.

* The VB-SemiAir comfort system with digital control unit is not yet available for all vehicles at the time of writing. Contact your VB-Partner for more information.

Photo: DIGITAL CONTROL UNIT

DIGITAL CONTROL UNIT

The VB-SemiAir comfort system with digital control unit offers a number of additional benefits. For example, you can specify the unit used to display the air pressure or review (historic) notifications. This way you have access to more information about your auxiliary air suspension system.

CHANGING LOADS, CONSISTENT VEHICLE BEHAVIOUR.

Photo: Ford Transit VB-SemiAir view through

WHEN SHOULD YOU CHOOSE THE VB-SEMIAIR-COMFORT SYSTEM?

Our easy-to-use Product Finder will help you select the right suspension or air suspension system for your needs. The Product Finder performs a search for your vehicle and will show the best solution for your specific make and model. That way, you can be sure the relevant solution is actually available for your vehicle.

Go to Product Finder

WANT TO GET THE VB-SEMIAIR COMFORT SYSTEM FOR YOUR VEHICLE?

Our partner network has been structured such that you will always be able to find a VB-Partner in your region. Our VB-Partners can assist you with a quotation, fitting and/or any repair/maintenance work needed. Our VB-Partners have undergone specialist training in all aspects of fitting our systems and will be able to advise you appropriately.

Want to find out who is the nearest VB-Partner in your region?

OTHER SEMI AIR SUSPENSION SYSTEMS

Photo: VB-SemiAir brochure

WANT TO READ MORE?

We have a specific brochure available for the 'semi air suspension' product group. To read through everything again at your leisure, click on the button below to download the VB-SemiAir brochure.

Download PDF
